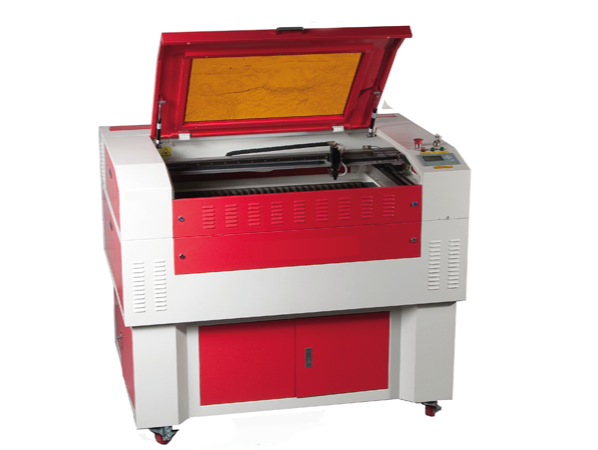

UK Phoenix 90 Laser System

An investment in this Laser System begins with top-of-the-line performance and a wide variety of features and enhancements, including:
Model: Phoenix 90

Engraving Area: 600X900mm/ 23.60X35.44in.
Engraving Speed: 860mm/s / 33.8 inches per second
Engraving Depth: 5mm / 0.21in.(acrylic)
Cutting Depth: Acrylic 0 to10mm.
Up and down work table
Electric Motor Honeycomb table Up and down
280mm adjustable
Laser Power: 60W or 80W
Driving Method: Step Motor


Water Cooling Air pump: Included
Laser Tube life: 1200 to 1500 Hours (option to purchase a tube with up to 10,000 hours)
Recommended Spare Parts and Consumables: Laser Tube,
Focus lens, Reflection lens
Equipment Dimensions:1400mm by 1050mm by 1000mm

Net weight: 160KG
Shipping weight: 350KG (Wooden box)










Download Spec Sheet




Finance and Rental is available on this machine –
